Dynamic 4-L - 4-Way Large Masking Screen
SKU DT-DYN-4-L

Dynamic 4-L - 4-Way Large Masking Screen

£27,366.00 - £27,366.00
Login for Prices
Login for Prices
£27,366.00 - Login for Prices
Login for Prices

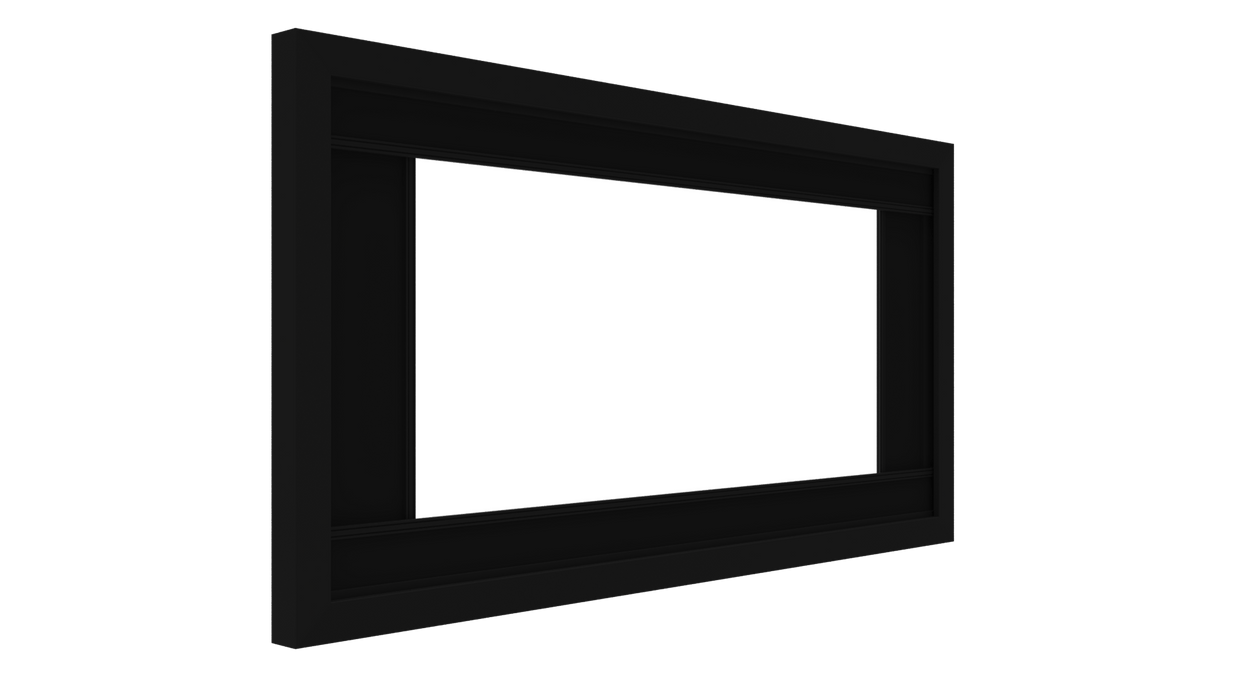

On-wall projector screen with 4-way motorised masking for visible screen width greater than 420cm up to 540cm

The DT Dynamic-4-L is an on-wall projector screen optimised for large sizes, featuring 4-way motorised masking and Mask Position logic-based control.

PRODUCT HIGHLIGHTS:

  • Motorised Variable Width Masking – 1.33 to 2.40:1
  • Sizes 420cm – 540cm wide
  • Mask Position Logic – Preset-free mask position selection
  • RS232 and IP control as standard
  • SES image surface fitting – Toolless front fitting screen surface
  • Whispertec quiet motors

Manufacture Lead Time

8 Weeks

Manual

Installation Manual

Control Protocol IP/RS232

Specifications and Drawings

Datasheet

Create a Custom Drawing

Extras

The Dynamic-4-L supports 4-way motorised masking, allowing perfect framing of all aspect ratios in the range of 1.33 to 2.40:1. This variable width and variable height masking maximise the impact of all types of content.

The Mask Position Logic (MPL) system is a proprietary development of DT Screens. It enables the Dynamic-4-L to calculate the exact location where the masks should be positioned to create any requested aspect ratio in the supported range. With MPL, setting mask presets is no longer required. The Silicon Edge Surface technology (SES) enables the screen surface to be fitted without needing tools and from the front of the screen. The screen surface is factory CNC cut for exact fitting, thus ensuring uniform tension. SES enables the screen surface to be removable for access and maintenance behind.
