Dynamic 2TB-L - Top and Bottom Masking Screen
SKU DT-DYN-2TB-L

Dynamic 2TB-L - Top and Bottom Masking Screen

£22,246.00 - £22,246.00
Login for Prices
Login for Prices
£22,246.00 - Login for Prices
Login for Prices

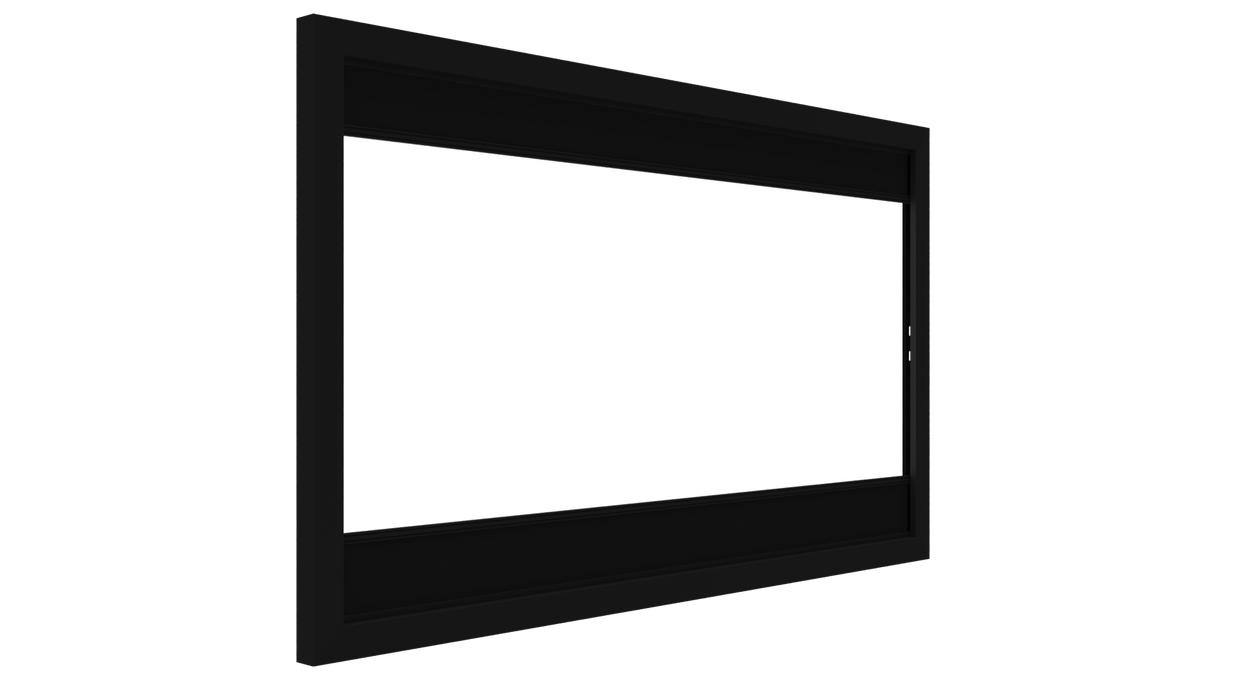

On-wall projector screen with 2-way motorised side masking for visible screen width greater than 510cm up to 690cm

The DT Dynamic-2S-L is an on-wall projector screen optimised for large sizes, featuring 2-way motorised side masking and Mask Position logic-based control.

PRODUCT HIGHLIGHTS:

  • Motorised Variable Width Masking – 1.33 to 2.40:1
  • Sizes 510cm – 690cm wide
  • Mask Position Logic – Preset-free mask position selection
  • RS232 and IP control as standard
  • SES image surface fitting – Toolless front fitting screen surface
  • Whispertec quiet motors

Manufacture Lead Time

8 Weeks

Manual

Installation Manual

Control Protocol IP/RS232

Specifications and Drawings

Datasheet

Create a Custom Drawing

Extras

The Dynamic-2S-L supports 2-way motorised side masking, allowing perfect framing of aspect ratios in the range of 1.33 to 2.40:1. This variable width and constant height masking maximise the impact of movie content.

The Mask Position Logic (MPL) system is a proprietary development of DT Screens. It enables the Dynamic-2S-L to calculate the exact location where the masks should be positioned to create any requested aspect ratio in the supported range. With MPL, setting mask presets is no longer required. The Silicon Edge Surface technology (SES) enables the screen surface to be fitted without needing tools and from the front of the screen. The screen surface is factory CNC cut for exact fitting, thus ensuring uniform tension. SES enables the screen surface to be removable for access and maintenance behind.
