Install Clearance required for Dynamic screens
During the specifying of our Dynamic range of masking screens it is important to allow for clearance to enable installation to be easy and possible.
There are two options for building our dynamic screens:
In sections on the wall, which is easiest and safer, especially with larger screens requiring fewer people
Build the screen on the floor, then lift it into the position already assembled
Beware that option 2 while it enables less clearance space on the wall it means that the screen has to be lifted as one peice and this can be very heavy. Correct lifting practices and risk assments should be carried out by the installer before doing this. This option is not available on our Dynamic L or XL screens.
Build the screen on the wall in sections (Advised):
To be able to build the screen in the wall in sections the following clearance is needed around these Dynamics screen models:
MODEL | SIDE GAP (EACH SIDE) | TOP/BOTTOM GAP |
---|---|---|

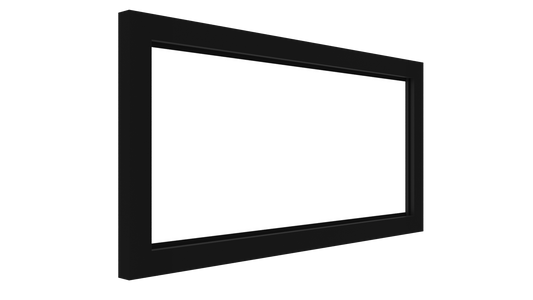

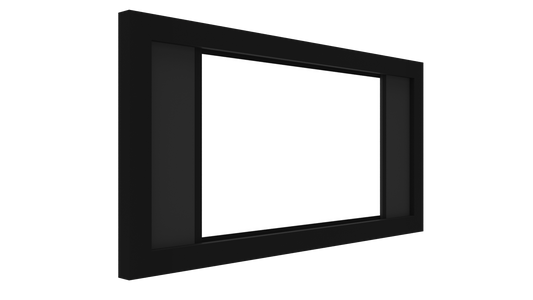

Dynamic 2S | 50mm [2"] | 12mm [0.5"] |

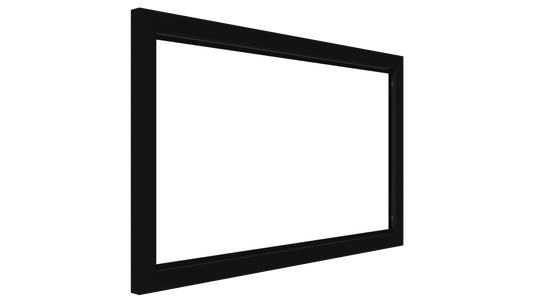

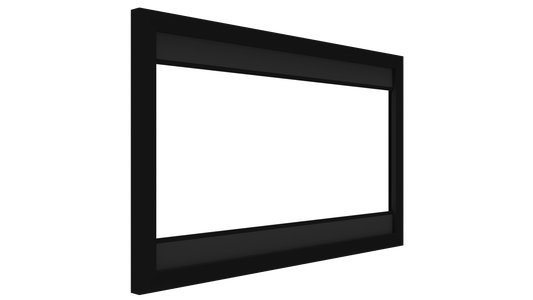

Dynamic 2TB | 12mm [0.5"] | 50mm [2"] |

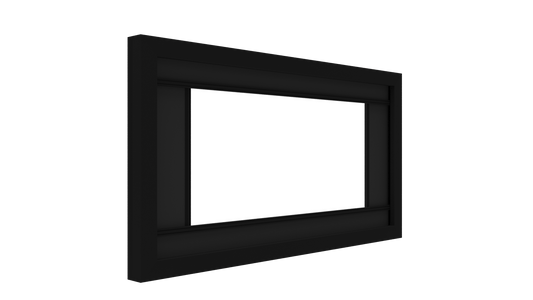

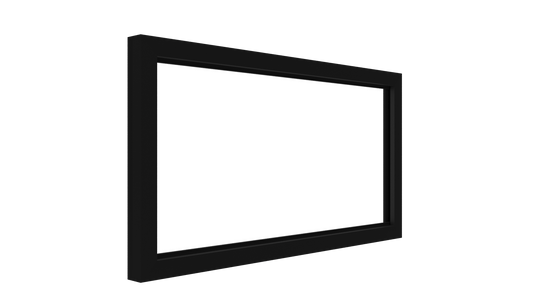

Dynamic 4 | 50mm [2"] | 12mm [0.5"] |

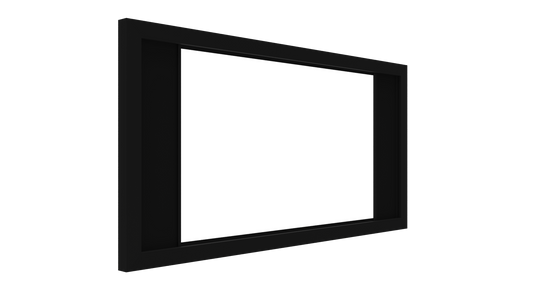

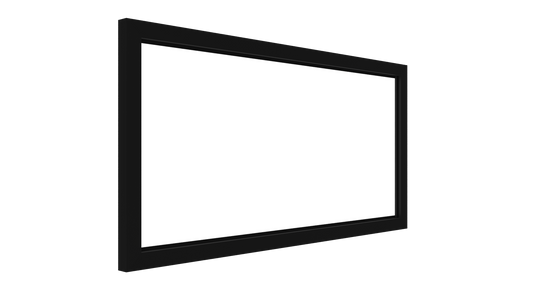

Dynamic 2S-L | 25mm [1"] | 12mm [0.5"] |

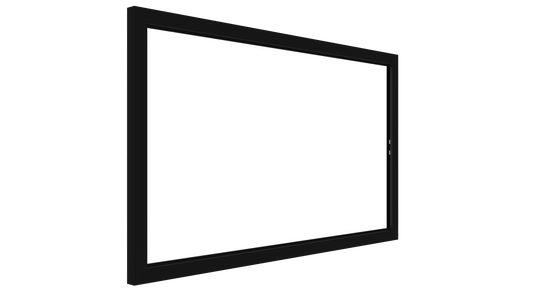

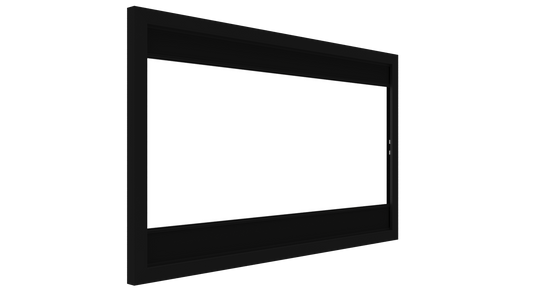

DYNAMIC 2TB-L | 25mm [1"] | 12mm [0.5"] |

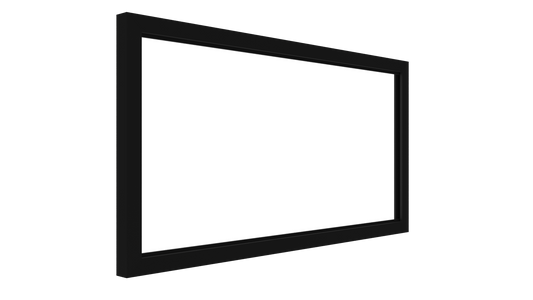

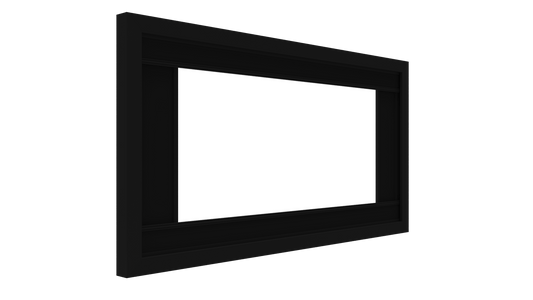

Dynamic 4-L | 25mm [1"] | 12mm [0.5"] |
Dynamic 2S-XL | 50mm [2"] | 12mm [0.5"] Top Only |

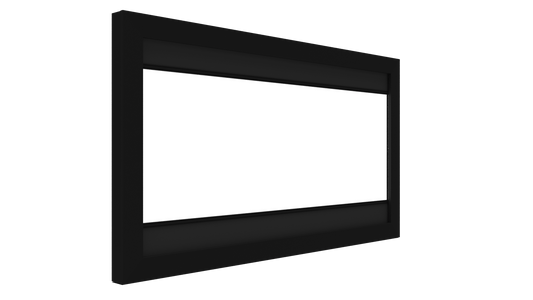

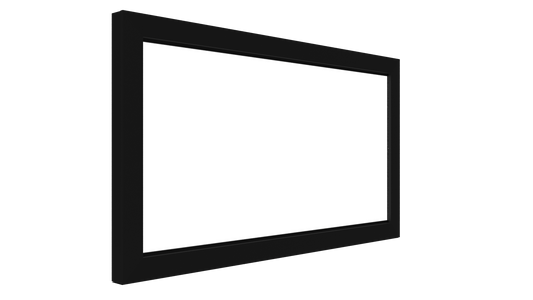

DYNAMIC 2TB-XL | 50mm [2"] | 12mm [0.5"] Top Only |

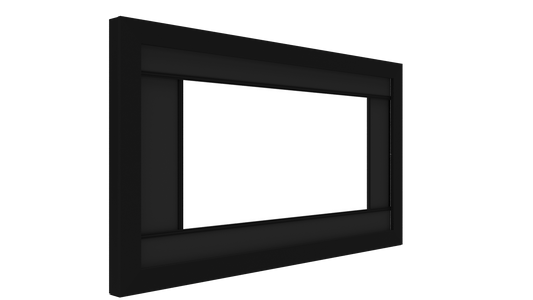

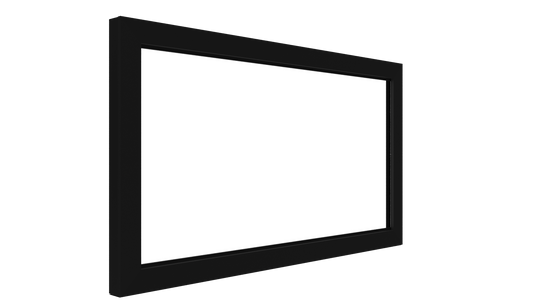

Dynamic 4-XL | 50mm [2"] | 12mm [0.5"] Top Only |
Dynamic - AM | 25mm [1"] | 12mm [0.5"] |
Building the screen on the floor then lifting as a single peice:
To be able to build the screen on the floor and then lifting into position as a single peice the following is needed around these Dynamics screen models:
MODEL | SIDE GAP (EACH SIDE) | TOP/BOTTOM GAP |
---|---|---|
Dynamic 2S | 12mm [0.5"] | 12mm [0.5"] |
Dynamic 2TB | 12mm [0.5"] | 12mm [0.5"] |
Dynamic 4 | 12mm [0.5"] | 12mm [0.5"] |
Dynamic 2S-L | Not possible | Not possible |
DYNAMIC 2TB-L | Not possible | Not possible |
Dynamic 4-L | Not possible | Not possible |
Dynamic 2S-XL | Not possible | Not possible |
DYNAMIC 2TB-XL | Not possible | Not possible |
Dynamic 4-XL | Not possible | Not possible |
Dynamic - AM | 12mm [0.5"] | 12mm [0.5"] |
Note all dimensions are a minimum. More is always advisable to make installation easier, especially on larger screens.
